Save hundreds by learning how to diagnose a warm fridge and safely recharge small-system refrigerants.
Why Your Fridge Is Warming Up
Before you call an appliance repair tech—or replace your refrigerator entirely—it helps to understand what’s actually going on.
Modern refrigerators use high-efficiency hydrocarbon refrigerants such as R600a (isobutane) or R290 (propane). These refrigerants perform extremely well, but they run at very low charge levels. Because of this, even a tiny leak or moisture contamination can cause your fridge to:
- run warm
- short-cycle the compressor
- click on and off
- freeze only partially
- take hours longer to cool
Most people assume the compressor is dead.
In reality, the fridge is often just undercharged.
This guide will walk you through the process, step by step.
What You’ll Need
These tools make the job simple and safe. You can get everything here:
You’ll need:
- Bullet Piercing Valve (for systems without service ports)
- Charging Hoses (36"+ recommended) and gauge
- Refrigerant Can Tap
- R600a or R290 Refrigerant (match your fridge label)
- Proseal Leak Sealant (optional but recommended)
- Safety glasses and gloves
Step 1 — Verify Your Refrigerator’s Refrigerant Type
Open your fridge or freezer compartment and look for the manufacturer’s data label.
Common refrigerant types in modern units:
- R600a (Isobutane) → Most common today
- R290 (Propane) → Found in some commercial/garage units
Do NOT proceed until you confirm your refrigerant type.
Step 2 — Access the Compressor Area
Unplug the refrigerator and pull it away from the wall. Remove the rear service panel to expose:
- compressor
- condenser
- suction line
- discharge line
Look for an existing service port (rare).
If none exists, you’ll need to install a bullet piercing valve.

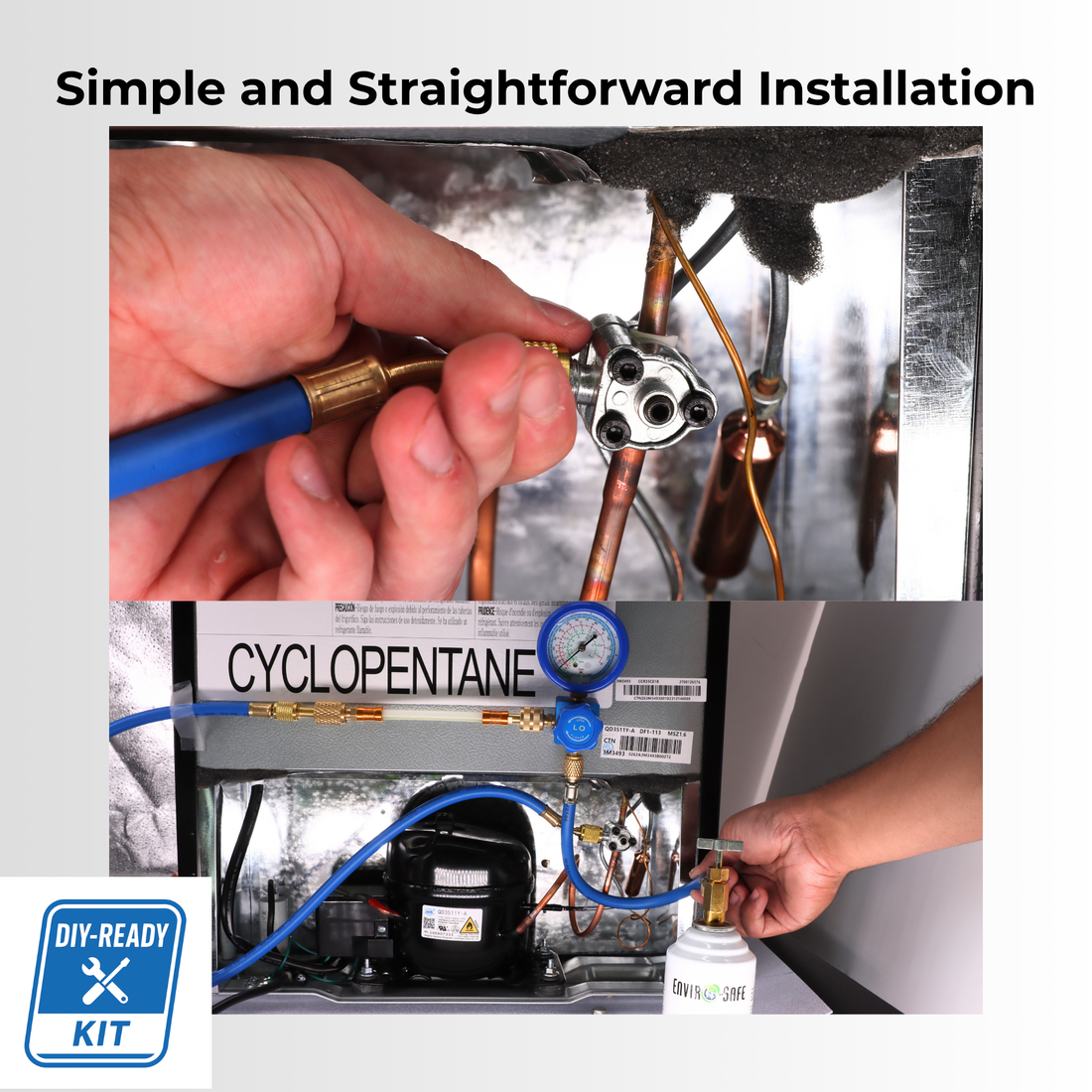

Step 3 — Install the Bullet Piercing Valve
Place the valve on the suction line (the larger diameter copper line).
Steps:
- Place white seal on needle side
- Clamp the valve around the line
- Tighten evenly with the included hex tool
- DO NOT pierce the line yet
Once the valve is mounted, attach your hose and can tap.
Step 4 — Equipment Setup
- Attach one end of your charging hose to the BPV.
- Attach the other end to your gauge or gauge.
- Attach one end of your second charging hose to your top tap
- Attach the other end of your second charging hose to your gauge.
- Screw the top tap onto your refrigerant can.
- Make sure the T-Valve is raised all the way up before attaching.
After setup, plug the fridge back in so the compressor starts running.
Step 5 — Pierce the Line and Check Pressure
Use the hex tool to slowly turn the valve’s center pin until it pierces the copper line.
You’ll now see system pressure through the gauge.
Compare this pressure to typical low-side readings for R600a or R290 small systems (you are mainly confirming the system is low, not charging by pressure target).
Look up the following: "Recommended low side pressure for [Insert fridge make and model here] at [insert room temperature here] ambient temperature.
If your system pressure matches then you are finished. The bullet piercing valve must stay put on the suction line but at this point you can remove all of your equipment and make a partial return for a refund. The system will need serviced or replaced.
Step 6 — Add Refrigerant(If system is low)
Open the can tap valve slightly.
Add refrigerant slowly, in 1–2 second bursts.
Allow the system to stabilize between pulses and check the pressure each time.
Your goal: Match the stabilized pressure to the recommended manufacturer's pressure.
Small systems require very little refrigerant.
Go slow!
Step 8 — Monitor Cooling Results
Within 10–45 minutes, you should see fridge and freezer temperature dropping!
If temperatures continue to climb even after recharging, the system may require a deeper inspection.
If You Need the Tools Used in This Guide
Everything required for this process—refrigerants, hoses, taps, valves, additives, and leak detection kits—can be found here:
👉 Shop Small-System Refrigeration Tools & Refrigerant Kits
Frequently Asked Questions
Do I need a license to buy R600a or R290?
No. Hydrocarbon refrigerants used in small systems do not require an EPA license to purchase.
Is recharging safe?
Yes, as long as you follow proper instructions and safety precautions. These systems use extremely small charges.
What if my fridge warms up again later?
You may have a micro-leak. ProSeal or ProDry will seal and stabilize the system. We also include this is in some of our cans: R600a w/Proseal and Prodry
Final Thoughts
Modern refrigerators usually aren’t dead—
they’re just low on refrigerant or have a minor leak.
With the right tools and this guide, you can restore cooling performance and save hundreds compared to a service call or replacement.
